The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1114000Material :
Carbon SteelColor :
RAL 7035

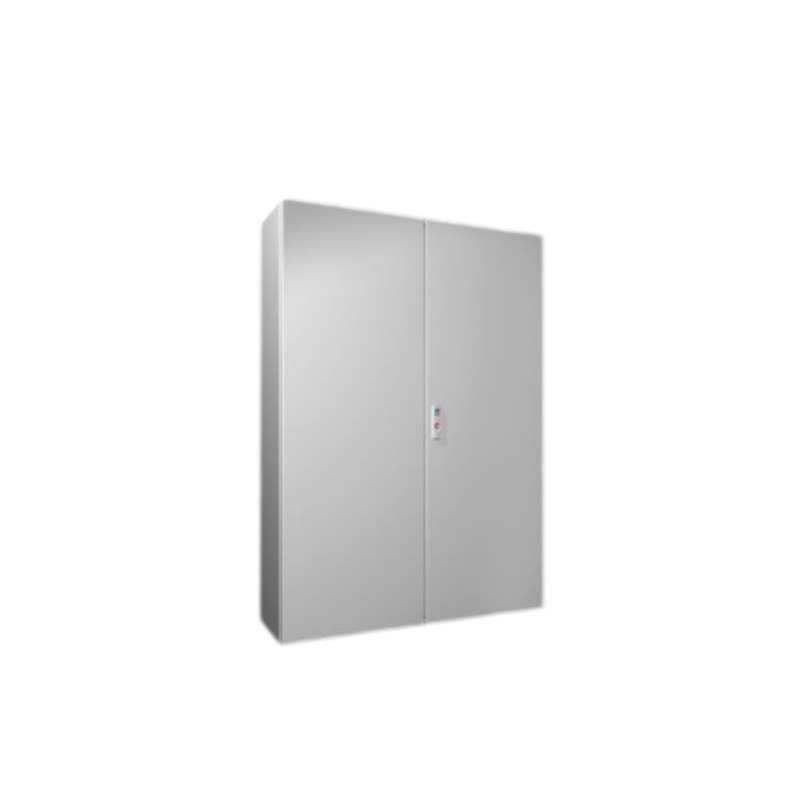

The Rittal AX 1114000 is a tall-format double-door carbon steel wall-mounted enclosure for control systems organized into many vertically stacked equipment and terminal rows. Its 1,000 × 1,400 × 300 mm body provides a 945 × 1,375 mm mounting area while retaining 300 mm enclosure depth for projected devices, wiring ducts and cable bends. IP55, NEMA 1/12, UL Type 1/12 and IK10 ratings support protected industrial installations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1114000 |
| Dimensions | Width: 1,000 mm Height: 1,400 mm Depth: 300 mm ( Width: 39.4 ˝ Height: 55.1 ˝ Depth: 11.8 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 55 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 945 mm x 1,375 mm ( 37.2 ˝ x 54.1 ˝ ) |
| Number of doors | 2 |
| Interchangeable door catch | Yes |
| Lock | Lock version: 3-point locking system No. of locks: 1 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 6 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 82.9 kg |
| Gross weight | 88.5 kg |
| PCF/VE (cradle-to-gate) | 275.27 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813199 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When the Panel Must Support a Full-Height Control Architecture
AX 1114000 provides 1,375 mm of usable panel height for control systems divided into several functional levels, such as incoming power, protection, drives, control hardware and terminal distribution. The 945 mm panel width keeps each row broad enough for grouped devices, while the 300 mm enclosure depth provides clearance for equipment projection and vertical cable routing.
Choose AX 1100000 when a 945 × 735 mm panel and 210 mm depth can accommodate the design with substantially less enclosure height. Choose AX 1115000 when the same 945 × 1,375 mm panel area needs 400 mm enclosure depth for larger component projections or cable bends. Before machining AX 1114000, confirm the supporting wall and mounting method for the complete populated mass, define cable-drop routes across the tall panel, preserve the three-point locking path, and set the required door-hinge orientation before assigning door cut-outs.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 945 × 1,375 mm mounting panel, two size 6 gland plates and a reversible door catch. The double doors use one three-point locking system. Define the two cable-entry groups and confirm outside diameters and connector dimensions before selecting alternative base plates.
AX 1114000 uses interior rails specified for 300 mm enclosure depth and replacement entry plates matching gland-plate size 6. For the 1,375 mm-high panel, plan the two base-entry zones around separate vertical cable routes so conductors can reach upper and lower equipment groups without unnecessary crossovers.
2394300 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2566300 Plastic Cable Gland Plate with Diaphragms
Size: 6
Width: 401 mm
Depth: 221 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Planning a full-height AX 1114000 assembly? Send the mounting-panel drawing, populated enclosure weight estimate, vertical equipment-zone sequence, deepest component, cable-drop routes, allocation for both size 6 base plates, required hinge side and door cut-outs identified by leaf before machining.
AX 1114000 provides a 1,000 × 1,400 × 300 mm double-door enclosure with a 945 × 1,375 mm mounting panel. Compare AX 1100000 when only 735 mm of panel height is required and a 210 mm-deep cabinet is preferable, or AX 1115000 when the full-height layout needs 400 mm depth. Base the decision on vertical row count, component projection, cable-bend space and the completed enclosure load on the mounting surface.
View AX Carbon Steel Enclosures →
