The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.
Item No :
AX 1130000Material :
Carbon SteelColor :
RAL 7035

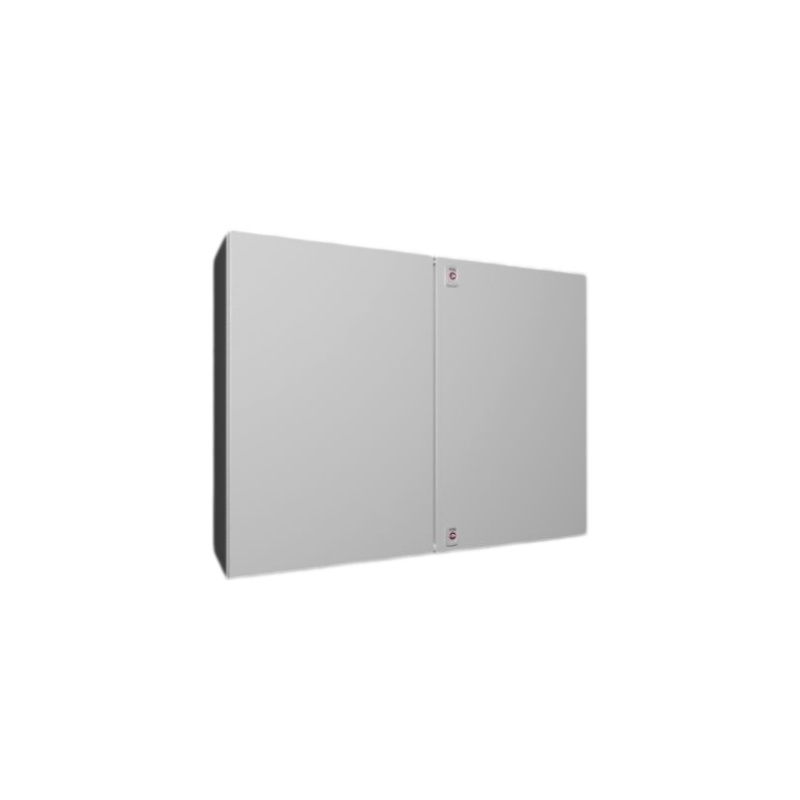

The Rittal AX 1130000 is a wide, medium-height double-door carbon steel wall-mounted enclosure for multi-row control layouts that need more front-to-back clearance than a shallow cabinet. Its 1,000 × 760 × 300 mm body provides a 945 × 735 mm mounting area for long equipment rows and vertical grouping, with 300 mm depth for projected devices, terminals and cable bends. IP55, NEMA 1/12, UL Type 1/12 and IK10 ratings support protected industrial installations.
Need pricing or availability? Contact SUWI Auto with your required quantity and delivery destination for model verification and quotation support.
| Article no.: | AX 1130000 |
| Dimensions | Width: 1,000 mm Height: 760 mm Depth: 300 mm ( Width: 39.4 ˝ Height: 29.9 ˝ Depth: 11.8 ˝ ) |
| Benefits |
|
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Supply includes | Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit |
| Protection category NEMA |
|
| Protection category IP to EN 60 529 | IP 55 |
| Type rating according to UL 50E |
|
| IK code | IK10 |
| Material thickness - door | 2 mm ( 0.08 ˝ ) |
| Material thickness - enclosure | 1.5 mm ( 0.06 ˝ ) |
| Material thickness – mounting plate | 2.5 mm ( 0.1 ˝ ) |
| Dimensions of mounting plate (W x H) | 945 mm x 735 mm ( 37.2 ˝ x 28.9 ˝ ) |
| Number of doors | 2 |
| Interchangeable door catch | Yes |
| No. of locks | 2 |
| Lock | Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit |
| Gland plate | Size: 6 Qty.: 2 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 50.3 kg |
| Gross weight | 52 kg |
| PCF/VE (cradle-to-gate) | 177.2 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813229 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
When the 945 × 735 mm Panel Needs 300 mm Depth
AX 1130000 combines a 945 × 735 mm mounting panel with 300 mm enclosure depth. The proportion suits layouts built around several broad equipment rows where terminals, plugs, wiring ducts or cable bends need more front-to-back clearance than a 210 mm-deep cabinet can provide.
Choose AX 1100000 when the identical 945 × 735 mm panel fits within 210 mm depth and minimizing wall projection is the priority. Choose AX 1096000 when 575 mm of panel height is enough at the same 1,000 mm enclosure width and 300 mm depth. Before machining AX 1130000, calculate the complete panel-to-door depth stack, confirm cable-bend clearance, assign controls to the correct door leaf, preserve both cam-lock and central meeting zones, and set the required hinge orientation.
Use this supply list to separate the included enclosure components from optional interior-installation and cable-entry parts:
The standard configuration includes a 945 × 735 mm mounting panel, two size 6 gland plates and a reversible door catch. Each door is secured by a 3 mm double-bit cam lock. Split the incoming cable schedule between the two base openings and confirm outside diameters and connector dimensions before selecting replacement plates.
AX 1130000 uses the interior rail specified for 300 mm enclosure depth and replacement entry plates matching size 6. Plan the two base openings beneath the left and right equipment groups, then check whether connector bodies and cable bends use the added depth without obstructing the doors or wiring ducts.
2394300 Rail for Interior Installation AX
Suitable for enclosure type: AX
Suitable for depth: 300 mm
Packaging unit: 4 pc(s).
2394100 Base configuration rail
Suitable for enclosure type: AX
Packaging unit: 1 pc(s)
2566300 Plastic Cable Gland Plate with Diaphragms
Size: 6
Width: 401 mm
Depth: 221 mm
2503020 Wall Mounting Bracket
Material: Carbon steel, zinc-plated Wall distance: 40 mm Suitable for enclosure type: AX / KX / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s)
4052000 Multitool
Packaging unit: 1 pc(s)
Plastic Wiring Plan Pocket
Packaging unit: 1 pc(s)
Ground Straps
Packaging unit: 8 pc(s)
2519020 Door stay
Packaging unit: 1 pc(s)
Checking whether AX 1130000 needs 300 mm depth? Send the mounting-panel drawing, deepest installed component, terminal and connector projection, cable bend radius, wiring-duct dimensions, allocation for both size 6 base plates, required hinge side and door cut-outs identified by leaf before machining.
AX 1130000 provides a 1,000 × 760 × 300 mm double-door enclosure with a 945 × 735 mm mounting panel. Move to AX 1100000 when the same panel can use a 210 mm-deep body, or to AX 1096000 when 575 mm of panel height is sufficient at 300 mm depth. Select by vertical row count, complete component projection, cable-bend space and allowable wall projection.
