Base/plinth element for attaching in the depth and for stabilizing the base/plinth.
AX Base/Plinth Elements, Lateral

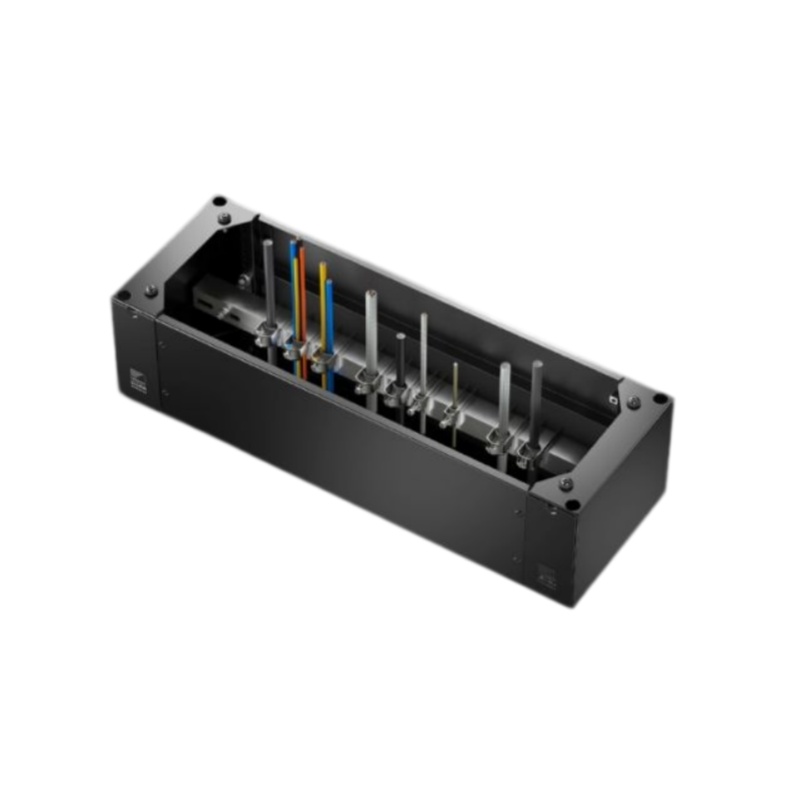

The Rittal AX lateral base/plinth elements form the side sections of the AX base/plinth system. They are installed in the depth direction and are used to stabilize the base/plinth.
When configuring an AX base/plinth, the front and rear panels are selected according to enclosure width, while the lateral elements on this page are selected according to enclosure depth. The front/rear and lateral components should correspond to the same base/plinth height and system generation.
Installed at the front and rear of the AX base/plinth. Select these components according to the enclosure width.
Installed along the enclosure depth and used to stabilize the base/plinth. Select according to the enclosure depth.
Match the front/rear and lateral components by the required 100 mm or 200 mm base/plinth height and use components from the same system generation.
For this product family, selection is based on two dimensions: the required base/plinth height and the AX enclosure depth.
| Article No. | Base/Plinth Height | For AX Depth | Position |
|---|---|---|---|
| AX 2830310 | 100 mm | 300 mm | Lateral / Side |
| AX 2830410 | 100 mm | 400 mm | Lateral / Side |
| AX 2830320 | 200 mm | 300 mm | Lateral / Side |
| AX 2830420 | 200 mm | 400 mm | Lateral / Side |
Step 1 — Check enclosure width
Use the AX enclosure width to select the corresponding AX front and rear base/plinth panels.
Step 2 — Check enclosure depth
Use the AX enclosure depth to select the corresponding AX lateral base/plinth elements.
Step 3 — Choose the base/plinth height
Select the corresponding 100 mm or 200 mm versions for the front/rear and lateral components.
Step 4 — Check the system generation
Do not combine first-generation and second-generation base/plinth components.
Example enclosure: AX, 800 mm wide × 400 mm deep
Required base/plinth height: 100 mm
Front & rear panels: AX 2830081 — selected from according to the 800 mm enclosure width.
Lateral elements: AX 2830410 — selected from according to the 400 mm enclosure depth.
Selection rule: enclosure width determines the front/rear panel; enclosure depth determines the lateral element. Both selections use the same 100 mm base/plinth height.
| Product type | Base/plinth elements, lateral |
| Enclosure type | AX |
| Version | New version/design |
| Material | Base/plinth components: Carbon steel; Cover caps: Plastic |
| Color | RAL 9005 |
| Available heights | 100 mm / 200 mm |
| Suitable AX depths | 300 mm / 400 mm |
| Approvals | UL + C-UL - FTTA |
| ETIM 9 | EC000721 |
| ECLASS 8.0 | 27182003 |
AX Base/Plinth Panels, Front and Rear
The front and rear panels are selected according to AX enclosure width and are used together with the lateral elements on this page to complete the base/plinth unit.
Available widths: 600, 800, 1000 and 1200 mm | Available heights: 100 and 200 mm
LED system light - the first light designed especially for enclosures! Advanced LED technology provides even more light into the last recess.
Read More
For cable entry into the base/plinth. With a 200 mm base/plinth height, one or two trim panels with brush strips may optionally be used. With the optional panel attachment, the trim panels with brush strips can also be mounted on the side of the base corner piece.
Read More
Stainless steel base/plinth trim panels are used depth-wise for laterally closing a base/plinth unit.
Read More

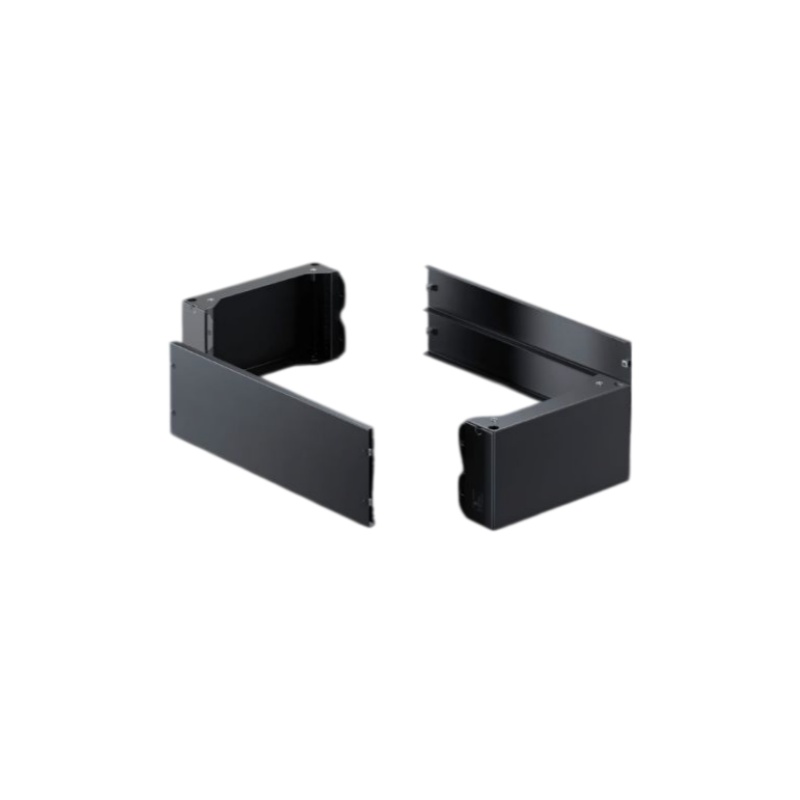

Base/plinth corner pieces with front and rear panel. Large openings in the base/plinth corner piece for best access to the screw-fastening point. Seamless baying.
