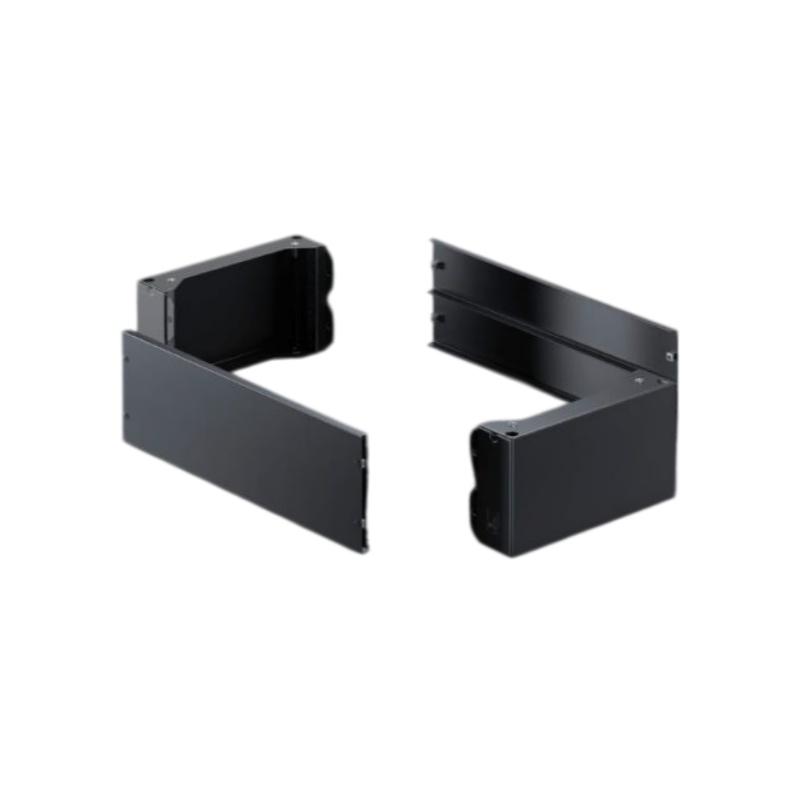

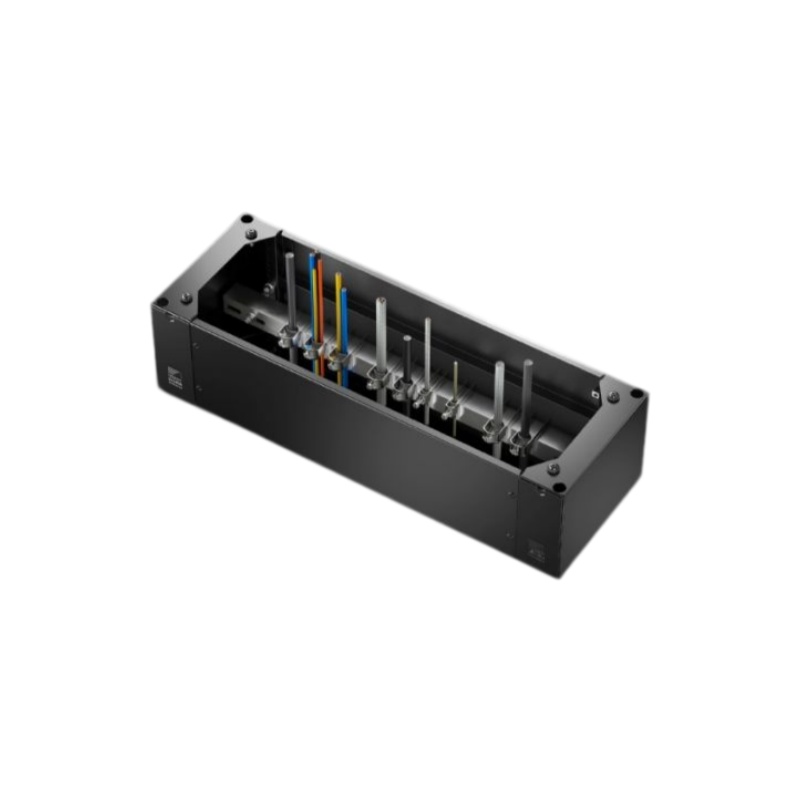

AX Base/Plinth Panels, Front and Rear

Rittal AX base/plinth front and rear panels provide a wide opening for convenient access to screw-fastening points and simple cable routing through the enclosure base.

Available in 100 mm and 200 mm heights for AX enclosure widths from 600 to 1200 mm. Select the article number by enclosure width and required base/plinth height.

Why Use AX Base/Plinth Front and Rear Panels?

Easy Cable Routing

The wide opening provides practical access for routing cables through the enclosure base.

Accessible Fastening Points

Maintains convenient access to the base/plinth screw-fastening points during installation.

100 mm or 200 mm Height

Choose the height according to installation clearance and cable-routing requirements.

Technical Overview

Product type	Base/plinth panels, front and rear
Enclosure system	AX
Design	New version
Material	Carbon steel
Color	RAL 9005
Available heights	100 mm / 200 mm
Suitable widths	600 / 800 / 1000 / 1200 mm
Packaging unit	2 pcs
ETIM	EC000721
ECLASS	27182003

AX Base/Plinth Front and Rear Panel Models

Compare models by base/plinth height and AX enclosure width.

Article No.	Height	For AX Width	Material	Color
AX 2830061	100 mm	600 mm	Carbon steel	RAL 9005
AX 2830081	100 mm	800 mm	Carbon steel	RAL 9005
AX 2830101	100 mm	1000 mm	Carbon steel	RAL 9005
AX 2830121	100 mm	1200 mm	Carbon steel	RAL 9005
AX 2830062	200 mm	600 mm	Carbon steel	RAL 9005
AX 2830082	200 mm	800 mm	Carbon steel	RAL 9005
AX 2830102	200 mm	1000 mm	Carbon steel	RAL 9005
AX 2830122	200 mm	1200 mm	Carbon steel	RAL 9005

100 mm and 200 mm Configuration

100 mm Configuration +

600 mm – 2830061 | 800 mm – 2830081 | 1000 mm – 2830101 | 1200 mm – 2830121

200 mm Configuration +

600 mm – 2830062 | 800 mm – 2830082 | 1000 mm – 2830102 | 1200 mm – 2830122

Compatibility

Designed for Rittal AX enclosures. The front/rear panel width must match the AX enclosure width.

Important: Side base/plinth elements are required to complete the base/plinth unit. Components from first-generation and second-generation base/plinth systems must not be combined.

Supply Includes

2 base/plinth panels, front and rear
Panel height according to selected article number: 100 mm or 200 mm

Before Ordering

Confirm that the enclosure is an AX model.
Confirm enclosure width: 600, 800, 1000 or 1200 mm.
Select the required base/plinth height: 100 mm or 200 mm.
Confirm the matching side base/plinth elements required to complete the assembly.
Confirm that all selected components belong to the same base/plinth generation.
