Rittal KX 1549000 E-Box, Carbon Steel

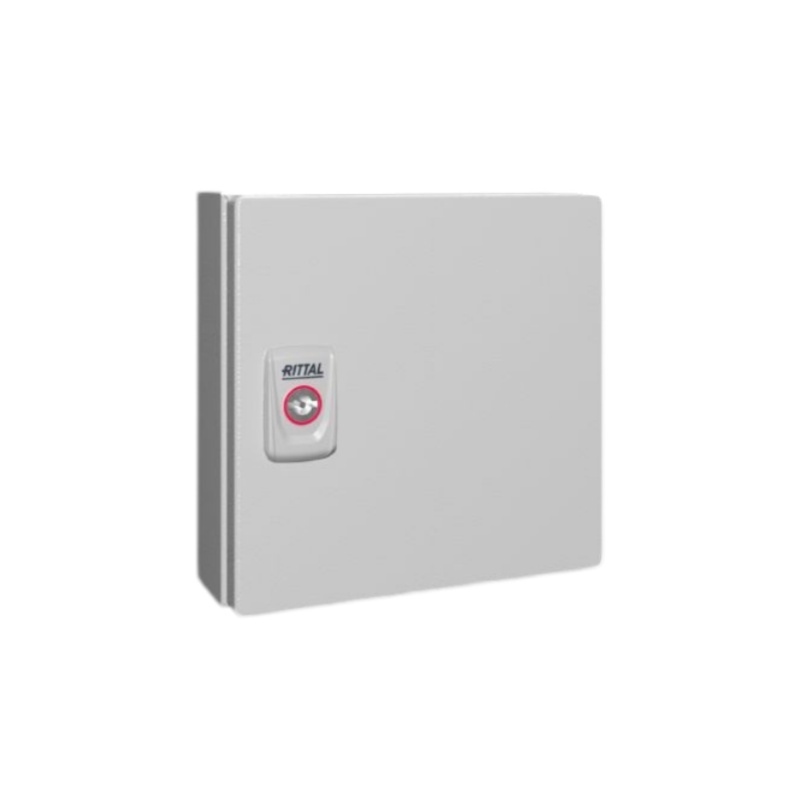

The Rittal KX 1549000 is a compact carbon steel E-Box designed for housing electrical and control components in space-limited installations. With dimensions of 200 × 200 × 120 mm, it provides a practical enclosure for small control, connection and automation applications.
The enclosure features a hinged door with an all-round PU seal and includes a zinc-plated mounting plate for installing internal components. Its compact format makes it suitable for machine-mounted and wall-mounted installations where reliable protection and straightforward access to electrical equipment are required.
| Article no.: | KX 1549000 |
| Dimensions | Width: 200 mm Height: 200 mm Depth: 120 mm ( Width: 7.87 ˝ Height: 7.87 ˝ Depth: 4.72 ˝ ) |
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Dimensions of mounting plate (W x H) | 175 mm x 185 mm ( 6.89 ˝ x 7.28 ˝ ) |
| Protection category IP to EN 60 529 | IP 66 |
| Protection category NEMA |
|
| Type rating according to UL 50E |
|
| IK code | IK08 |
| Material thickness - enclosure | 1.25 mm ( 0.05 in ) |
| Material thickness - door | 1.25 mm ( 0.05 in ) |
| Material thickness – mounting plate | 2 mm ( 0.08 in ) |
| Lock | No. of locks: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 2.437 kg |
| Gross weight | 2.637 kg |
| PCF/VE (cradle-to-gate) | 28.88 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 84879059 |
| EAN | 4028177816510 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX E-Box, WHD: 200x200x120 mm, sheet steel, with mounting plate, with door |
If 200 × 200 × 120 mm does not match the available wall space or component layout, compare KX E-Box model dimensions and series specifications before selecting another article number.
Included with KX 1549000
Items to Confirm or Order Separately
Use the official external dimensions and mounting-panel size as the starting point, then check the complete installed assembly. Component depth alone is not enough: rail height, terminals, wire exits, bend radius and clearance to the closed door all affect whether the layout will fit.
Rittal lists SZ 1590010 for KX carbon steel enclosures, SZ 2315000 for KX enclosures with a width of 200 mm, and SZ 2565100 for the M6 connection points used on KX doors, enclosures and mounting panels. These accessory pages specify enclosure type, width or connection arrangement rather than naming KX 1549000 individually. None of the three items is included in the published standard supply for KX 1549000, so confirm the required function, quantity and mounting arrangement before adding it to the order.
SZ 1590010 Wall Mounting Bracket
Fit basis: Listed for KX sheet steel enclosures
Wall distance: 10 mm
Packaging unit: 4 pc(s)
SZ 2315000 Support Rail TH 35/7.5
Fit basis: KX enclosure width 200 mm
Rail length: 187 mm
Packaging unit: 10 pc(s)
SZ 2565100 Earth Strap
Fit basis: KX M6 door, enclosure and mounting-panel connection points
Connection: M6–M6, 10 mm², length 200 mm
Packaging unit: 5 pc(s)
For other accessory categories or another enclosure size, return to the KX E-Box series page. Confirm every accessory against the enclosure material, width and connection arrangement rather than assuming all KX accessories fit every model.
Before machining is confirmed, check every proposed hole and cut-out against the current dimensional drawing, the 175 × 185 mm mounting-panel layout, the installed components and the required cable-entry arrangement. A machining drawing should identify the enclosure orientation, reference edges, hole or cut-out centerlines, dimensions and tolerances.
For review, provide: article number KX 1549000, required quantity, a marked-up drawing or CAD file, cut-out dimensions, reference points, tolerances, cable-entry direction and the planned accessory list. Final machining requirements should be agreed from the approved drawing rather than from the product-page dimensions alone.
