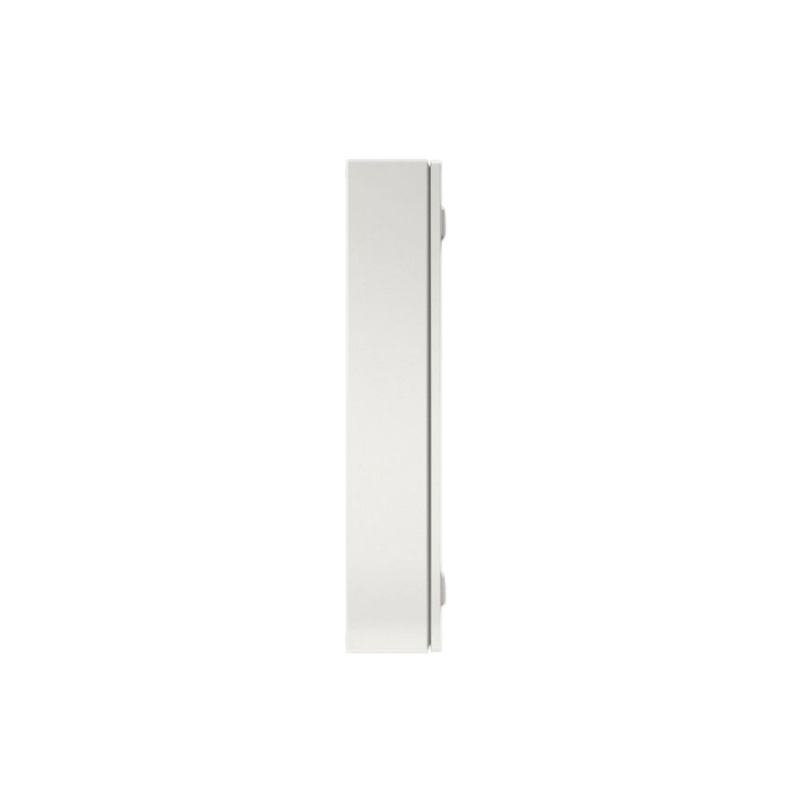

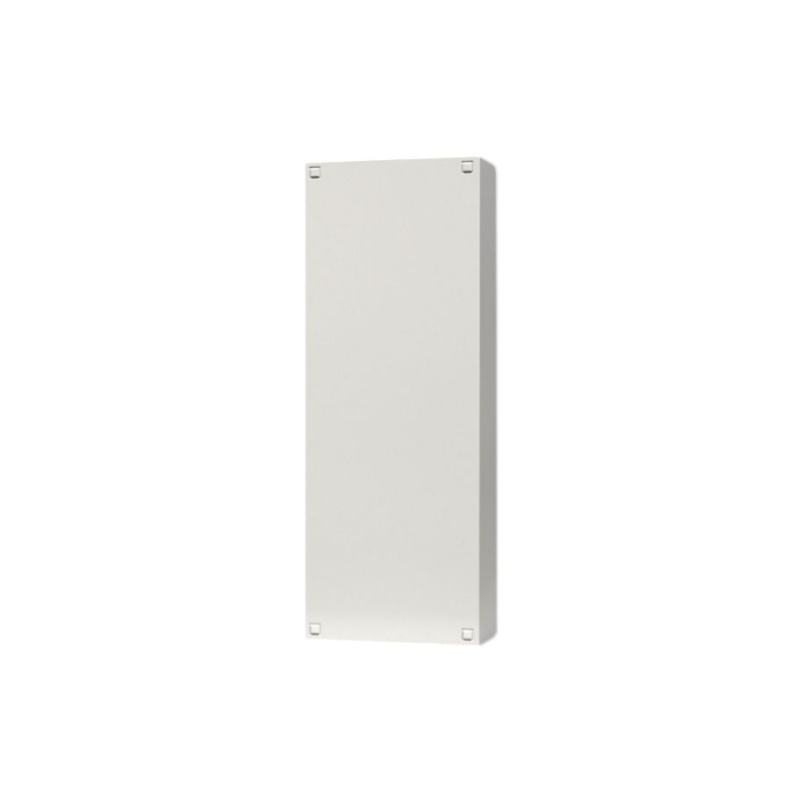

The Rittal E-Box KX is a compact carbon steel enclosure for small control, connection and automation applications. It is available in multiple sizes and depths, with a mounting panel, 180° hinge and flexible lock options.
Item No :
E-box KX, carbon steelColor :
RAL 7035IK code :
IK08
Rittal KX E-Box Carbon Steel Enclosures

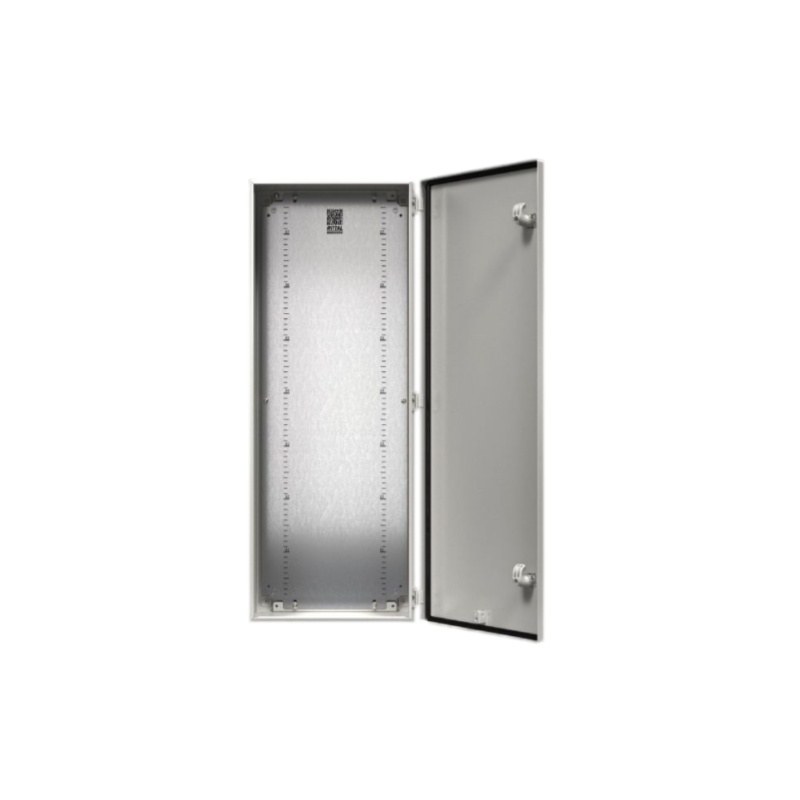

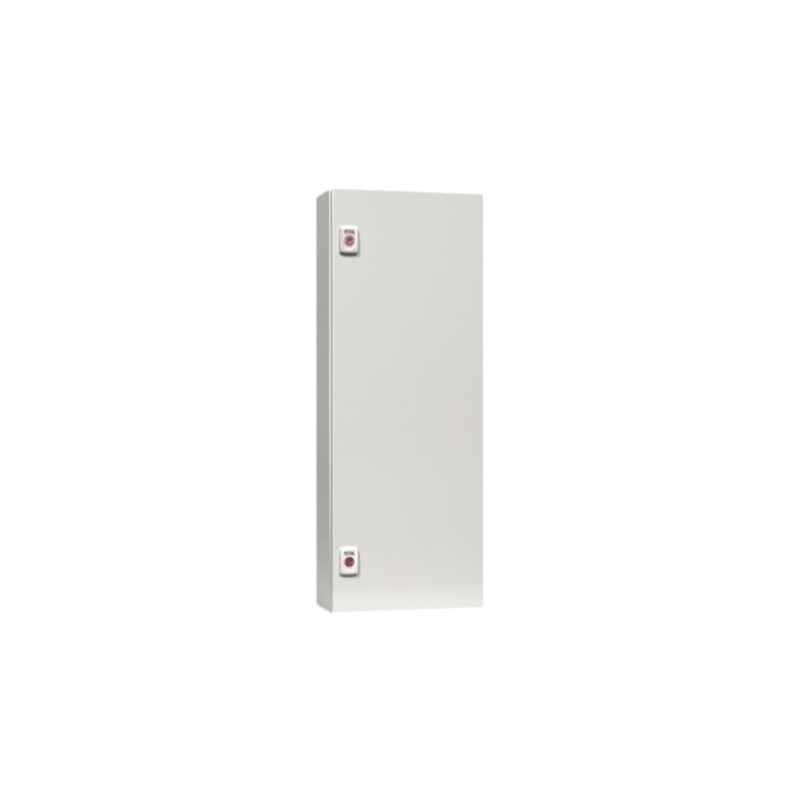

The Rittal KX E-Box is a compact carbon steel electrical enclosure with a hinged door and mounting panel. Customers use this small industrial control panel enclosure for PLC systems, machine controls, junction points, local control stations and other space-limited automation installations. Different sizes and depths are available to suit specific component layouts.
SUWI supplies genuine Rittal KX E-Box enclosures from stock. Our team can help you confirm the correct model, enclosure dimensions, custom cut-outs and quotation. Send SUWI the Rittal article number, required quantity and drawings to check availability and place an order.
Compare KX article numbers by enclosure W × H × D, mounting-panel size and lock quantity. Click an article number to open the current manufacturer reference; ask SUWI Auto to confirm availability, compatible accessories and quotation before ordering.
| Article No. | Enclosure W × H × D | Mounting Panel W × H | Locks | Depth Group |
|---|---|---|---|---|
| KX 1545000 | 150 × 300 × 80 mm | 125 × 285 mm | 1 | 80 mm |
| KX 1546000 | 200 × 200 × 80 mm | 175 × 185 mm | 1 | 80 mm |
| KX 1547000 | 200 × 400 × 80 mm | 175 × 385 mm | 1 | 80 mm |
| KX 1548000 | 150 × 300 × 120 mm | 125 × 285 mm | 1 | 120 mm |
| KX 1549000 | 200 × 200 × 120 mm | 175 × 185 mm | 1 | 120 mm |
| KX 1550000 | 200 × 400 × 120 mm | 175 × 385 mm | 1 | 120 mm |
| KX 1551000 | 150 × 150 × 80 mm | 125 × 135 mm | 1 | 80 mm |
| KX 1552000 | 200 × 300 × 80 mm | 175 × 285 mm | 1 | 80 mm |
| KX 1553000 | 150 × 150 × 120 mm | 125 × 135 mm | 1 | 120 mm |
| KX 1554000 | 200 × 300 × 120 mm | 175 × 285 mm | 1 | 120 mm |
| KX 1555000 | 300 × 300 × 120 mm | 275 × 285 mm | 1 | 120 mm |
| KX 1556000 | 300 × 400 × 120 mm | 275 × 385 mm | 1 | 120 mm |
| KX 1557000 | 200 × 500 × 120 mm | 175 × 485 mm | 2 | 120 mm |
| KX 1574000 | 200 × 300 × 155 mm | 175 × 285 mm | 1 | 155 mm |
| KX 1575000 | 300 × 300 × 155 mm | 275 × 285 mm | 1 | 155 mm |
| KX 1576000 | 380 × 300 × 155 mm | 365 × 275 mm | 1 | 155 mm |
| KX 1577000 | 300 × 400 × 155 mm | 275 × 385 mm | 1 | 155 mm |
| KX 1578000 | 300 × 600 × 155 mm | 275 × 585 mm | 2 | 155 mm |
| KX 1579000 | 300 × 800 × 155 mm | 275 × 785 mm | 2 | 155 mm |
Source and currency: Dimensions are shown in millimeters as W × H × D. KX 1576.000 uses a rotated interior arrangement, so its mounting-panel dimensions are shown as 365 × 275 mm. Use this table as a comparison aid and verify the selected article number against the linked Rittal product page and current technical documents before ordering.
Use the groups below to build a preliminary accessory list. Compatibility depends on the exact KX article number, enclosure dimensions, lock system, mounting method and planned cut-outs. Confirm the complete bill of materials before ordering.
| Installation task | Accessory group | Confirm before selection |
|---|---|---|
| Route and seal cables | Connector glands and modular sealing frames | Cable quantity, diameter, cut-out and sealing requirement |
| Mount the enclosure | Wall brackets and pole clamps | KX size, mounting surface, load and required spacing |
| Earth the enclosure | Ground straps | Connection points, length and conductor cross-section |
| Change access control | Lock inserts, covers and handles | Existing lock, required key system and door configuration |
| Install internal equipment | Support rails, clips, brackets and screws | Enclosure width, mounting-panel layout and component load |

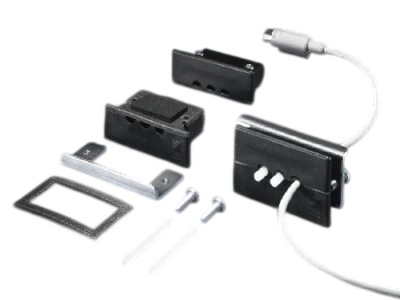

2400500 Connector Gland, Small
Number of cable entries: 3
Min. cable diameter: 4 mm
Max. cable diameter: 6 mm
Packaging unit: 5 pc(s).

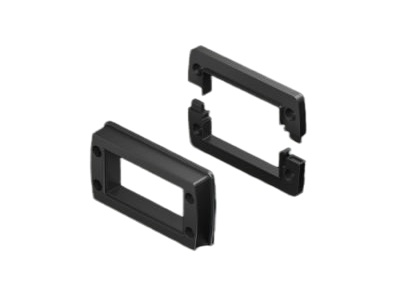

Sealing frame, modular
Packaging unit: 1 pc(s).
1590010 Wall Mounting Bracket
Material: Carbon steel, zinc-plated
Wall distance: 10 mm
Suitable for enclosure type: AX carbon steel / KX carbon steel / AX wall-mounted housing, 3-part
Packaging unit: 4 pc(s).
Wall Mounting Bracket
Material: Carbon steel, zinc-plated
Suitable for enclosure type: AX carbon steel / KX carbon steel / AX IT / EL
Packaging unit: 4 pc(s).
Pole clamp
Packaging unit: 1 pc(s).
2565100 Ground Straps
Connection: M6 – M6
Cross-section: 10 mm²
Length: 200 mm (7.87 ˝)
Installation options: Connection options KX: Door/cover M6, enclosure M6, mounting plate M6
Packaging unit: 5 pc(s).
Lock inserts, covers and handles should not be selected by appearance alone. Provide the current lock code or a clear photo and state the required access method so SUWI Auto can check compatibility.
2307000 Lock Insert
Packaging unit: 1 pc(s)
2460000 Lock Insert
Packaging unit: 1 pc(s)
2463000 Lock Insert
Packaging unit: 1 pc(s)
2462000 Lock Insert
Packaging unit: 1 pc(s)
2464000 Lock Insert
Packaging unit: 1 pc(s)
2476100 Lock cover
Packaging unit: 1 pc(s)
2537300 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2537400 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2537100 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2466000 Lock Insert
Packaging unit: 1 pc(s)
2465000 Lock Insert
Packaging unit: 1 pc(s)
2461000 Lock Insert
Packaging unit: 1 pc(s)
2460650 Lock Insert
Packaging unit: 1 pc(s)
2537500 Mini-Comfort Handle AX
Packaging unit: 1 pc(s)
2493000 Lock Cover
Packaging unit: 1 pc(s)
2314000 Support rail TH 35/7.5
Suitable for width: 150 mm
Length of support rail: 137 mm
Packaging unit: 10 pc(s)

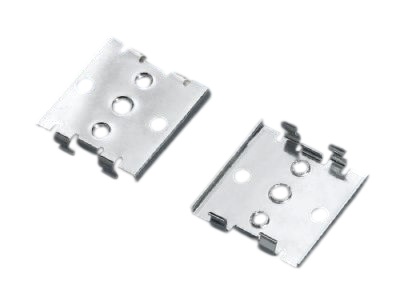

2309000 Mounting clip
Packaging unit: 30 pc(s).

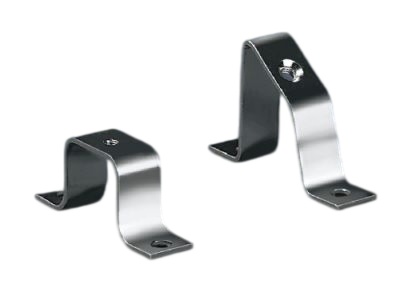

4597000 Mounting Bracket
Packaging unit: 4 pc(s).

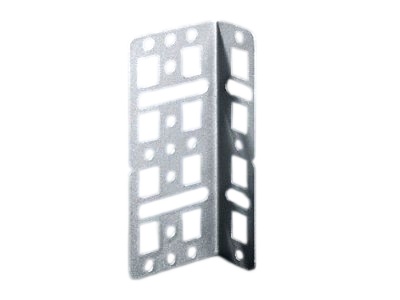

2365000 Rail Mounting Bracket
Version: Flat
Packaging unit: 20 pc(s).

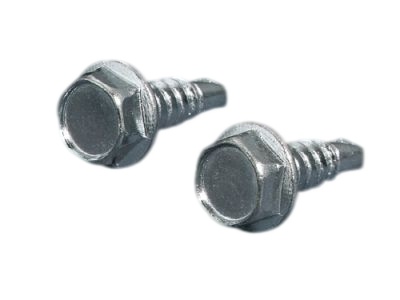

2487000 Self-tapping screws
Version: Self-tapping screws
Thread: ST 4.8
Thread length: 9.5 mm (0.37 ˝)
Packaging unit: 300 pc(s).

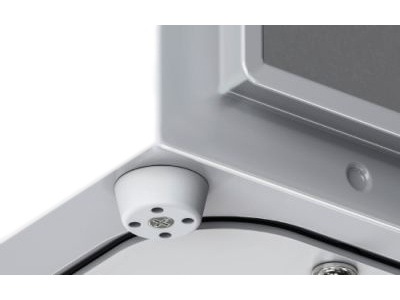

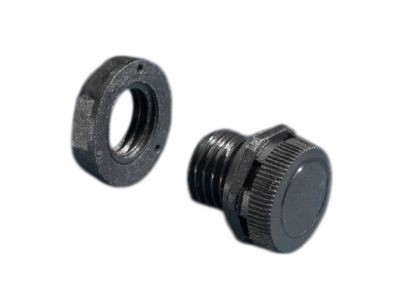

2459500 Pressure Relief Stopper
Packaging unit: 5 pc(s)
2459000 Enclosure Breather Valve
Packaging unit: 6 pc(s)

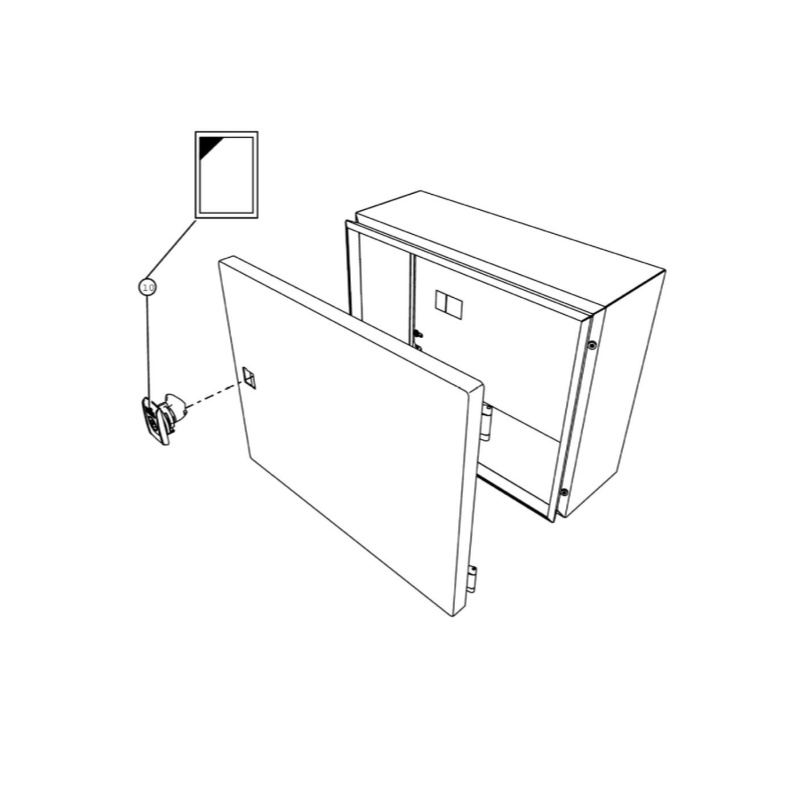

5051311 — Accessory Bag for E-Box KX
| Product Type | Use as a Starting Point When | Main Selection Check |
|---|---|---|
| E-Box KX, carbon steel | You need a compact enclosure with hinged door, mounting panel and selectable lock options. | Overall size, mounting-panel area, depth and accessories. |
| KX terminal box | The application is primarily terminal, junction or local connection work. | Cover or door format, cable-entry layout and internal terminal space. |
| AX compact enclosure | The control application requires a broader wall-mounted enclosure platform and more system expansion options. | Interior installation system, size, gland plates and accessory architecture. |
| Stainless-steel enclosure | Corrosion, moisture, cleaning or process conditions make carbon steel unsuitable. | Material grade, environmental exposure and required protection or approval. |
