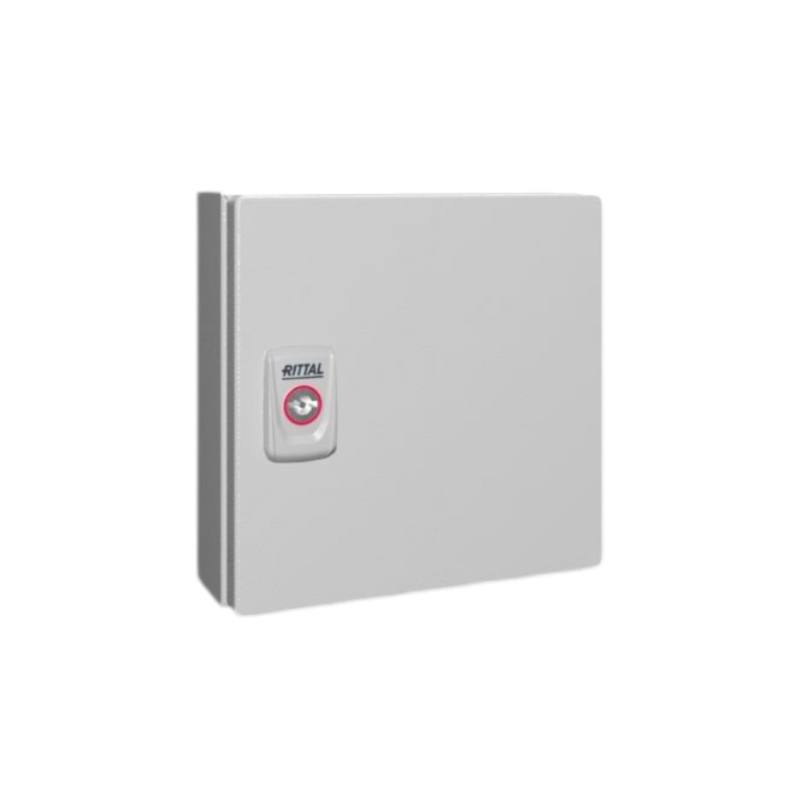

Rittal KX 1551000 E-Box,carbon steel

If the components, wiring or cable entries do not fit within the 150 × 150 × 80 mm format, compare larger or deeper KX E-Box models before confirming the article number.

Standard Supply

Check Component Fit Before Ordering

KX 1551000 has a small 125 × 135 mm mounting area and an external depth of 80 mm. Confirm the complete component and wiring arrangement at actual dimensions before ordering; a device may fit on the panel but still leave insufficient room for terminals, conductors or the closed door.

1. Draw the complete layout. Place every device, terminal and wire route within the 125 × 135 mm mounting area.
2. Check installed depth. Include mounting hardware, terminal projection, conductor bend radius and clearance to the closed door.
3. Reserve cable-entry space. Make sure glands or cut-outs do not occupy the space required by the internal equipment.
4. Move to a larger model when needed. Do not force the layout into KX 1551000 if wiring, heat dissipation or maintenance access becomes restricted.

For other accessory categories or another enclosure size, return to the KX E-Box series page. Confirm every accessory against the enclosure material, width and connection arrangement rather than assuming all KX accessories fit every model.

Machining the Compact 150 × 150 mm Housing

Complete the internal layout before positioning holes or cut-outs. On this compact housing, each opening must be checked against the installed equipment, cable-entry space and the current Rittal dimensional drawing. Show enclosure orientation, reference edges, center coordinates, dimensions and tolerances on the machining drawing.

For review, provide: KX 1551000, quantity, an approved drawing or CAD file, opening sizes and positions, tolerances and cable-entry direction. Confirm the final drawing before machining because the external 150 × 150 × 80 mm dimensions do not define usable internal clearance.
