The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Item No :
KX 1556000Color :
RAL 7035Weight :
6.01 kgProtection category IP to EN 60 529 :
IP 66

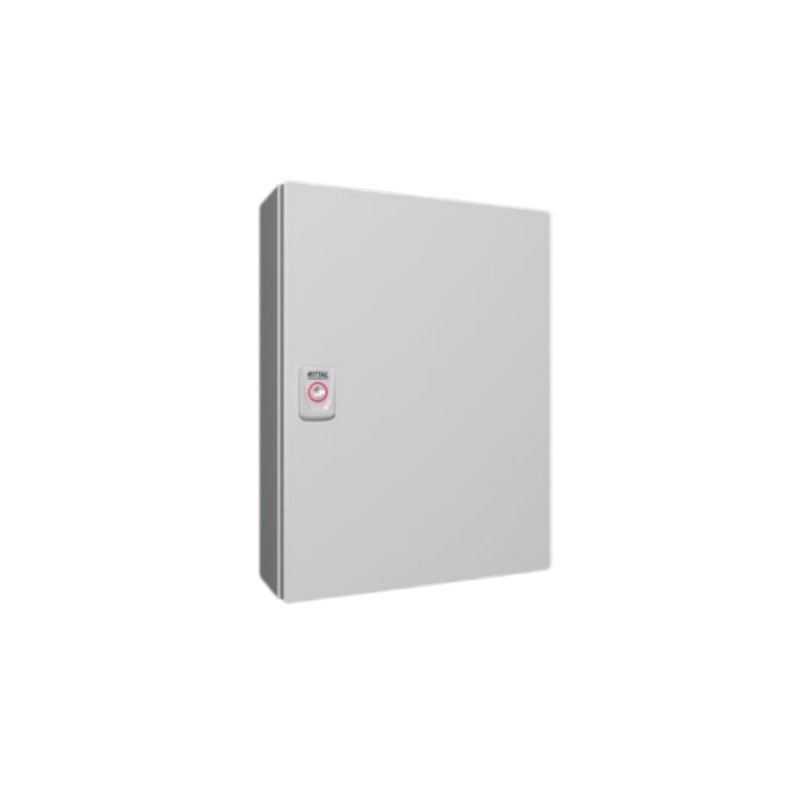

Rittal KX 1556000 E-Box, Carbon Steel
The Rittal KX 1556000 is a 300 × 400 × 120 mm carbon steel E-Box designed for compact electrical control and connection installations. Its taller format provides additional vertical installation space while retaining a 300 mm enclosure width.
The KX 1556000 is suitable for local machine controls, electrical junction points and small automation installations where additional enclosure height is required without increasing the overall width.
| Article no.: | KX 1556000 |
| Dimensions | Width: 300 mm Height: 400 mm Depth: 120 mm ( Width: 11.8 ˝ Height: 15.7 ˝ Depth: 4.72 ˝ ) |
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Dimensions of mounting plate (W x H) | 275 mm x 385 mm ( 10.8 ˝ x 15.2 ˝ ) |
| Protection category IP to EN 60 529 | IP 66 |
| Protection category NEMA |
|
| Type rating according to UL 50E |
|
| IK code | IK08 |
| Material thickness - enclosure | 1.25 mm ( 0.05 in ) |
| Material thickness - door | 1.25 mm ( 0.05 in ) |
| Material thickness – mounting plate | 2 mm ( 0.08 in ) |
| Lock | No. of locks: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 6.01 kg |
| Gross weight | 6.38 kg |
| PCF/VE (cradle-to-gate) | 37.68 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 84879059 |
| EAN | 4028177816589 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX E-Box, WHD: 300x400x120 mm, sheet steel, with mounting plate, with door |
Compared with KX 1555000, KX 1556000 keeps the same 300 mm width and 120 mm depth but increases the enclosure height from 300 mm to 400 mm and the mounting plate height from 285 mm to 385 mm. The additional height matters when the equipment arrangement needs another row or when wiring must be kept clear of the main component area.
Lay out the upper and lower equipment positions together with the cable-entry zone before choosing the taller enclosure. Top or bottom entries can consume part of the added vertical space, so the full 275 × 385 mm plate should not automatically be treated as available component area. If the complete assembly already fits comfortably on the 275 × 285 mm mounting plate of KX 1555000, the extra enclosure height is unnecessary.
Included with KX 1556000
The accessories below cover common mounting, support-rail and grounding requirements for KX 1556000. For the support rail, match the accessory to the enclosure's 300 mm width before ordering.
SZ 1590010 Wall Mounting Bracket
Fit basis: Listed for KX sheet steel enclosures
Wall distance: 10 mm
Packaging unit: 4 pc(s)
SZ 2316000 Support Rail TH 35/7.5
Fit basis: KX enclosure width 300 mm
Rail length: 287 mm
Packaging unit: 10 pc(s)
SZ 2565100 Earth Strap
Fit basis: KX M6 door, enclosure and mounting-panel connection points
Connection: M6–M6, 10 mm², length 200 mm
Packaging unit: 5 pc(s)
For other accessory categories or another enclosure size, return to the KX E-Box series page.
Set the enclosure orientation and cable-entry direction before locating openings. On this taller housing, top or bottom entries must be checked against the first and last equipment rows on the 275 × 385 mm mounting plate; side openings must not conflict with wiring duct, terminals or projected components. Check every position against the current Rittal dimensional drawing, and show reference edges, center coordinates, dimensions and tolerances on the machining drawing.
For review, provide: KX 1556000, quantity, an approved drawing or CAD file, opening sizes and positions, tolerances and cable-entry direction. Confirm the final drawing before machining because the external 300 × 400 × 120 mm dimensions do not define usable internal clearance.
