The small enclosure KX, E-Box KX, carbon steel offers remarkable ease of assembly and flexibility when selecting lock systems.
Item No :
KX 1557600Color :
RAL 7035Weight :
6.6 kgProtection category IP to EN 60 529 :
IP 66

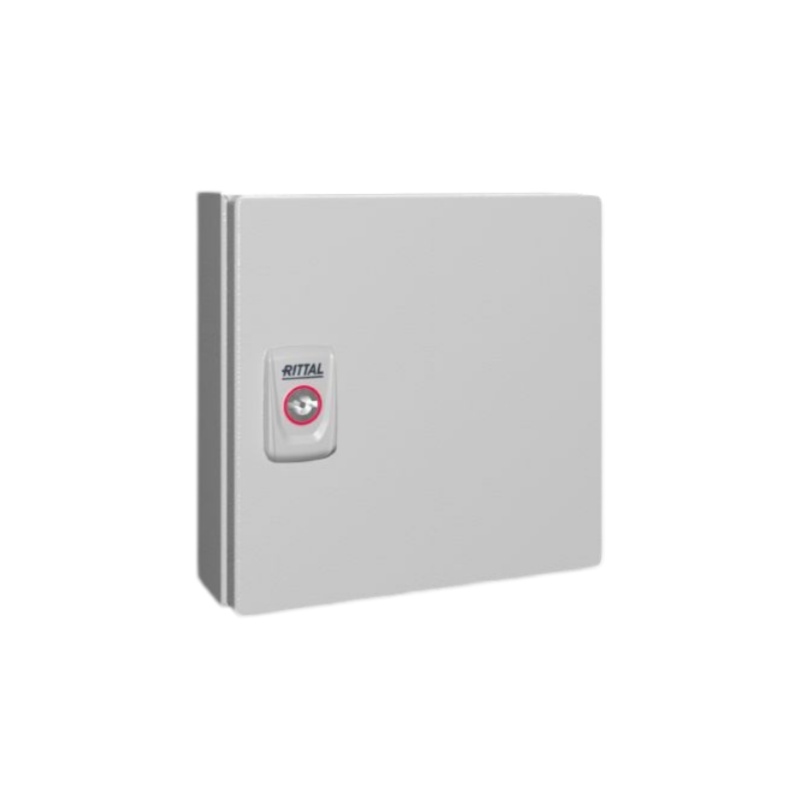

Rittal KX 1576000 E-Box, Carbon Steel
The Rittal KX 1576000 is a wide-format 380 × 300 × 155 mm carbon steel E-Box with a 365 × 275 mm mounting plate. Its extra mounting width supports side-by-side terminal, relay and control-device groups without adding enclosure height.
The KX 1576000 is suited to local machine controls and electrical junction assemblies where horizontal grouping is more useful than a taller vertical layout. For procurement, provide the component arrangement, maximum installed component depth, cable-entry direction, quantity and any required machining drawing.
| Article no.: | KX 1576000 |
| Dimensions | Width: 380 mm Height: 300 mm Depth: 155 mm ( Width: 15 ˝ Height: 11.8 ˝ Depth: 6.1 ˝ ) |
| Material | Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal |
| Surface finish | Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated |
| Color | RAL 7035 |
| Dimensions of mounting plate (W x H) | 365 mm x 275 mm ( 14.4 ˝ x 10.8 ˝ ) |
| Protection category IP to EN 60 529 | IP 66 |
| Protection category NEMA |
|
| Type rating according to UL 50E |
|
| IK code | IK08 |
| Material thickness - enclosure | 1.25 mm ( 0.05 in ) |
| Material thickness - door | 1.25 mm ( 0.05 in ) |
| Material thickness – mounting plate | 2 mm ( 0.08 in ) |
| Lock | No. of locks: 1 |
| Base material | Carbon steel |
| Packaging unit | 1 pc(s). |
| Net weight | 6.6 kg |
| Gross weight | 6.635 kg |
| PCF/VE (cradle-to-gate) | 39.42 kg CO2 eq (Cat B) |
| Information regarding the PCF class | Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared |
| Customs tariff number | 84879059 |
| EAN | 4028177816626 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | KX E-Box, WHD: 380x300x155 mm, sheet steel, with mounting plate, with door |
KX 1576000 keeps the 300 mm enclosure height and 155 mm depth of KX 1575000 but increases the mounting plate width from 275 mm to 365 mm. That additional width is useful when terminal rows, wiring ducts or multiple device groups cannot be arranged within the narrower plate without stacking them vertically or reducing the required spacing.
Check the complete horizontal layout before moving to the wider housing. If the assembly fits within 275 mm of mounting width, KX 1575000 retains the same height and depth with a narrower 300 mm external width. If the constraint is mounting height rather than width, KX 1577000 is the more relevant comparison because its 275 × 385 mm mounting plate provides additional vertical space instead of extending the horizontal row.
Included with KX 1576000
The accessories below cover mounting, lock-operation and grounding options applicable to KX 1576000. Check the stated fit basis for each item before adding it to the enclosure configuration.
SZ 1590010 Wall Mounting Bracket
Fit basis: Listed for KX sheet steel enclosures
Wall distance: 10 mm
Packaging unit: 4 pc(s)
AX 2537100 Mini-Comfort Handle
Fit basis: Listed for KX E-Box with cam
Lock preparation: Lock inserts and profile semi-cylinders
Packaging unit: 1 pc(s)
SZ 2565100 Earth Strap
Fit basis: KX M6 door, enclosure and mounting-panel connection points
Connection: M6–M6, 10 mm², length 200 mm
Packaging unit: 5 pc(s)
For other accessory categories or another enclosure size, return to the KX E-Box series page.
Set the enclosure orientation and cable-entry direction before locating openings. On this wide housing, left- or right-side cable entries must not obstruct the horizontal device rows, while top or bottom openings must preserve the conductor-routing space across the 365 mm mounting width. Check door cut-outs against the lock and hinge positions shown in the current Rittal dimensional drawing. Show reference edges, center coordinates, dimensions and tolerances on the machining drawing.
For review, provide: KX 1576000, quantity, an approved drawing or CAD file, opening sizes and positions, tolerances and cable-entry direction. Confirm the final drawing before machining because the external 380 × 300 × 155 mm dimensions do not define usable internal clearance.
